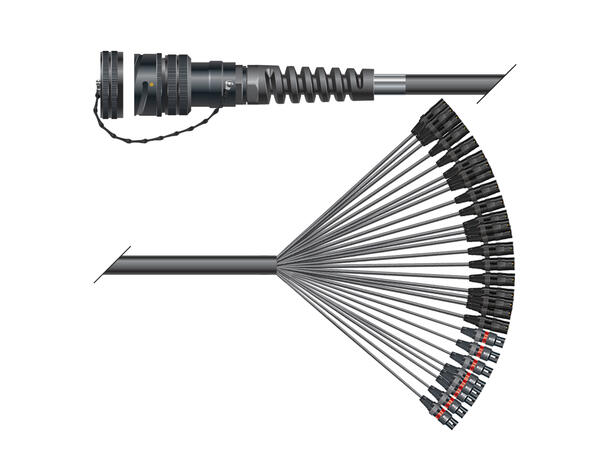

For the construction of these splices we use our highly flexible QUANTUM multipair cable with single insulated and shielded wire pairs. On the XLR side we use high-grade connectors with numbered rings from HICON and NEUTRIK; alternatively we also offer a version with NEUTRIK Convertcons on the returns.
Configuration:
14,40 m Patch & Microphone Cable SC-Scuba 14; 2 x 0,14 mm²; PVC Ø 3,80 mm; black (200-0311)
1 x HICON Round LK, arrangement 28-21, size 16, 37-pole , metal-, Cable connector, Bajonet, black (HI-LK037MV)
1 x HICON Round-LK 37 male (CIR28), Cover cap, Bajonet, black (HI-LKCAP-M37)
1 x Sommer cable Protective Bag for Round plug HI-LK up to 54-pole HI-SOCA 19-pole, subsequent assembly possible, grey (BAG-LKM-O)
12 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), straight, nickel coloured (NC3MXX)
Specifications:
| Length ft | 3,94 |
|---|---|
| Article number | SUYG-M12/00-0120 |
| EAN | 4049371155564 |
| In | 12 |
| Out | 00 |
| Configuration | separate grounding |
| Length m | 1,2 |
| Article number | MCORE-LKSP |
| Name | Multicore-Kabel Rund-LK <-> Spleiss |
| Application | Multicore cable with round LK connector -> Splice |
| Additional function | seperate grounding |
| Old article number | QMAR-M |
