Beskrivelse

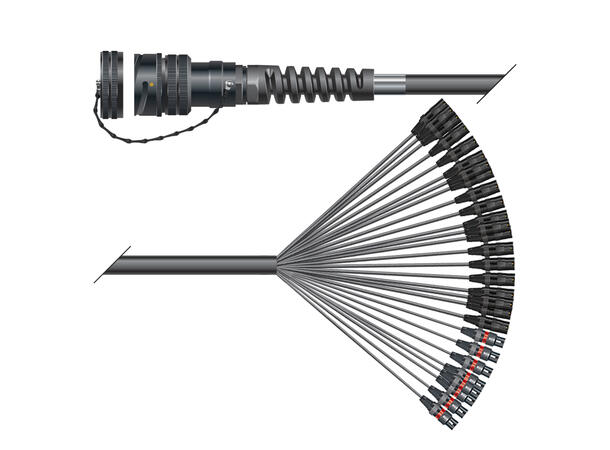

For the construction of these splices we use our highly flexible QUANTUM multipair cable with single insulated and shielded wire pairs. On the XLR side we use high-grade connectors with numbered rings from HICON and NEUTRIK®; alternatively we also offer a version with NEUTRIK® Convertcons on the returns.
Configuration:
3,00 m Patch & Microphone Cable SC-Scuba 14; 2 x 0,14 mm²; PVC Ø 3,80 mm; black (200-0311)
———————
1 x HICON Round LK, arrangement 28-21, size 16, 37-pole , metal-, Cable connector, Bajonet, black (HI-LK037MV)
1 x HICON Round-LK 37 male (CIR28), Cover cap, Bajonet, black (HI-LKCAP-M37)
1 x Sommer cable Protective Bag for Round plug HI-LK up to 54-pole HI-SOCA 19-pole, subsequent assembly possible, grey (BAG-LKM-O)
———————
12 x NEUTRIK® XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), straight, nickel (NC3MXX)
12 x NEUTRIK® Code ring for XLR XX transparent (XXRC)
1 x NSXX-01-48/01-16
12 x NEUTRIK® Cover cap for XLR MXX, XLR FXX black (BXX0-WOR)
