Beskrivelse
NB! bilde kan avvike Keeping things tidy…

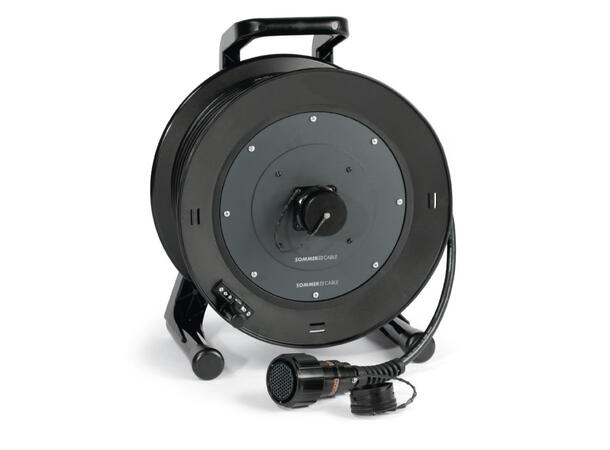

is easy when the stagebox is so neatly integrated into the cable reel. We only use SCHILL cable reels and the Sommer cable REEL from our own production.
The Sommer cable REEL has a height-adjustable carrying handle (which means no more back or shoulder problems), a fixing brake and two decent wheels (see section on “Cable Reels“).
Configuration:
33,00 m Multipair SC-Transfer AMCK; PUR Master-Blend; black | 2 x 0,14 mm² x number of pairs 48 (100-0401-48)
1 x SCHILL Kabeltrommel, HT480-SW, core: 178 mm, thread width: 142 mm, metal (HT480-SW)
1 x HICON Round LK, arrangement 40A-150, size 18, 150-pol , metal-, Panel socket, bayonet husk, black (HI-LK150FP)
1 x HICON Round-LK 85 / LK 150 female (CIR32), Cover cap, Bajonet, black (HI-LKCAP-F85)
1 x #RUND-LK85
1 x HICON Round LK, arrangement 40A-150, size 18, 150-pol , metal-, Cable socket, bayonet husk, black (HI-LK150FV)
1 x HICON Round-LK 85 / LK 150 female (CIR32), Cover cap, Bajonet, black (HI-LKCAP-F85)
1 x Sommer cable Protective Bag for all LK-cable connectors male / female, subsequent assembly, grey (BAG-LK-O)
Specifications:
| Article number | TFXXHM48/00-3300 |
|---|---|
| EAN | 4049371158640 |
| In | 48 |
| Out | 00 |
| Configuration | separate grounding |
| Length m | 33 |
| Reel | HT series |
| Article number | STAGE-REEL |
| Name | cable reel with multipair |
| Brand | Sommer cable |
| Application | Stagebox <-> Multicore |
| Old article number | STAGEDRUM |
