MADI – or “Multichannel Audio Digital Interface”…
…is a language currently spoken by a great number of digital mixing console and recording systems. Totether with a sync signal a maximum of 64 audio channels can be transmitted via a single coax line. In most cases digital mixing console systems require 2 coaxial connections between stagerack and console. Our coax multicore and coax hybrid cables can do this – and a
lot more – using only one compact line.
The TRANSIT MC 4400 HD-SDI 4 HD coax and 4 digital-capable NF lines.
The TRANSIT MC 5230 HD-SDI combines 5 HD coax with 2 digital-capable NF lines plus a 2.5 mm² power supply in one line.
Finally the TRANSIT MC 3231 HD-SDI offers 3 HD coax, 2 digital-capable NF lines, 1 CAT.6a network line and a 2.5 mm² power supply in one line.
Advantages:
- high-quality cable with high-grade connectors
- compact design because several coax lines (and in some cases even mains supply & LAN) are combined in one cable
- less cabling work
Application:
- Connection of digital mixing console systems
- Connection of digital recording systems (OB van)
Configuration:

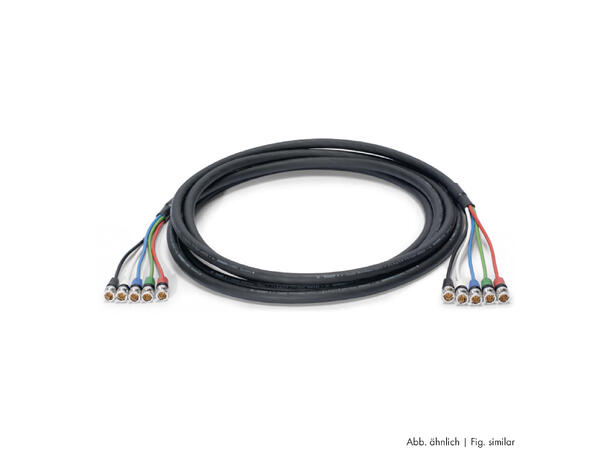

25,00 m video cable Transit 5 HD; 1 x 0,60/2,80; PVC Ø 13,80 mm; black (600-0851-05)
5 x NBNC75BFG7-D
5 x NBNC75BFG7-D
1 x Cardboard packaging for blister hooks, Design Sommer cable
Specifications:
| Length ft | 82,02 |
|---|---|
| Article number | TSGR-05-2500 |
| EAN | 4049371160056 |
| Length m | 25 |
| Article number | TSGR |
| Brand | Sommer cable |
| Application | MADI Connection system |
| Connector-Brand | NEUTRIK |
| Cable | TRANSIT HD |
| Type | BNC |
| Type (detailed) | Reartwist BNC connector male |
