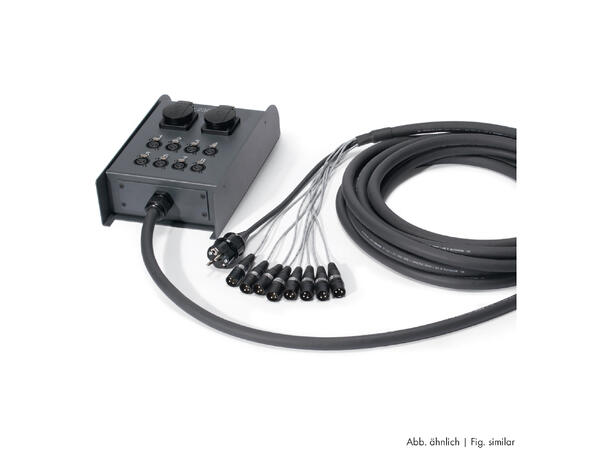

SOMMER XHFJ-M08/00-0500 Multikabel

Beskrivelse

Our Monolith cable family…

generated the idea for this straight and structured stage cabling to combine signal and power leads. The result was a compact floor stagebox which provides 2 Schuko sockets as well as a max. of 8 D openings.
Now every band, every small festival stage or every fixed installation can be equipped with a simple, efficient and reasonably priced cabling.

The box is available in different configurations:
1.) Box with fixed cable to breakout
2.) Box with 1 or 2 multipins

As a supplement there are also various breakout cables and extension adapters available. As an alternative we offer our proven cable reel systems with a built-in patch panel where we make use of the same components. To make the system also usable for wiring lighting technology setups, we also supply this solution with 5-pole XLR connectors.

We offer the country-specific UK and France/Belgium versions for the same price.

If you cannot find your desired configuration on these pages, please contact us.

Configuration:

1 x +TBH020800
5,00 m SC-Monolith 8 HV; power: 3 x 2,50 mm²; DMX: 2 x 0,14 mm²; PVC Ø 17,40 mm; black (500-0281-8)
2 x #SCHU-FP230/16DS
8 x NEUTRIK XLR, 5-pol , metal-, Soldering-female connector, silver plated contact(s), Type D, nickel coloured (NC5FDM3L1)
1 x Mennekes SCHUKO, 2-pole , plastic-, screw-type-male connector, nickel plated contact(s), straight, max. 2,5 mm², black (SCHU-MC230/16PSW)
8 x NEUTRIK XLR, 5-pol , metal-, Soldering-male connector, silver plated contact(s), straight, chrome-plated (NC5MXX-BAG)

Specifications:
