Beskrivelse

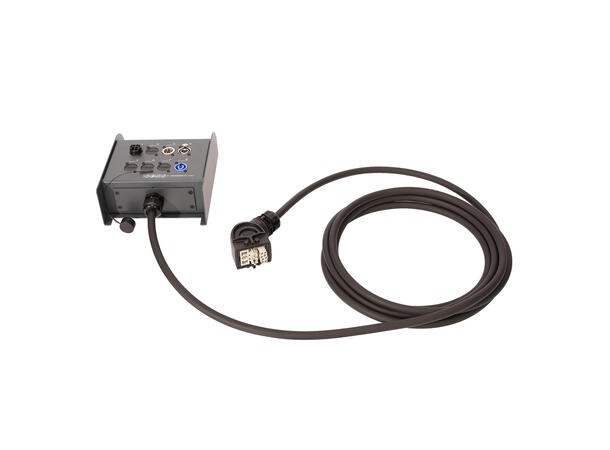

Configuration:
25,00 m SC-OCTOPUS-HYBRID 443 PUR; fiber: 4 x 50/125 µm; audio: 2 x 2 x 0,22 mm²; power: 3 x 2,50 mm²; PUR Ø 16,20 mm; black (591-4431)
1 x HICON 4 x LC, metal-, Patch-female connector, Type D M3, black (HI-FIBER4-FD)
1 x NEUTRIK XLR, 3-pole , metal-, Soldering-female connector, silver plated contact(s), Type D M3, nickel coloured (NC3FDLX-M3)
1 x NEUTRIK XLR, 3-pole , metal-, Soldering-male connector, silver plated contact(s), Type D M3, nickel coloured (NC3MDLX-M3)
1 x NEUTRIK PowerCon, 3-pole , plastic-, Connector-in technology-male connector, silver plated contact(s), Type D, blue (NAC3MPA-1)
1 x +HAN-LWL443FW
Specifications:
| Length ft | 82,02 |
|---|---|
| Article number | YH14-L01/01-2500 |
| EAN | 4049371259668 |
| In | 01 |
| Out | 01 |
| Length m | 25 |
| Article number | YH14-L |
| Brand | Sommer cable |
| Application | Digital Fiber Distribution System |
| Connector-Brand | HARTING |
| Connector-Brand | NEUTRIK |
| Connector-Brand | HICON |
| Cable | Octopus Hybrid 443 |
| Type | XLR |
| Type | fibre |
| Type | powerCon |
| Type | multipin |
| Type (detailed) | HI-FIBER4-FP with 4 x LC-Input |
| Type (detailed) | PowerCon (blue) |
| Type (detailed) | XLR 3-pole male |
| Type (detailed) | HAN-ECO female, without clamps, angled |
| Type (detailed) | XLR 3-pole female |
