Beskrivelse

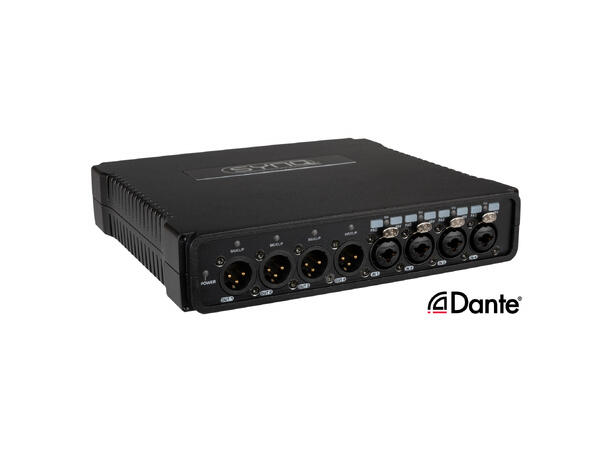

Premium quality analog / DANTE® network audio bridge for touring applications with 4 analog inputs + outputs
- Premium quality analog / Dante network audio bridge for touring.
- Converts DANTE® Network audio to 4 hi-grade balanced analog outputs.
- Converts 4 hi-grade balanced analog inputs to DANTE® Network audio.
- All 4 (LINE/MIC) inputs equipped with -24dB PAD & 48V Phantom power.
- GIGABIT Ethernet I/O based on Hi-speed Marvell switch (no linking delays).
- Built-in DSP AUDIO PROCESSING (parametric EQs, compressors, delays, …) on all channels: perfect for use as DANTE enabled speaker management processor, but also deployable in many other applications.
- 8×8 AUDIO MATRIX for local premix, flexible routing, …

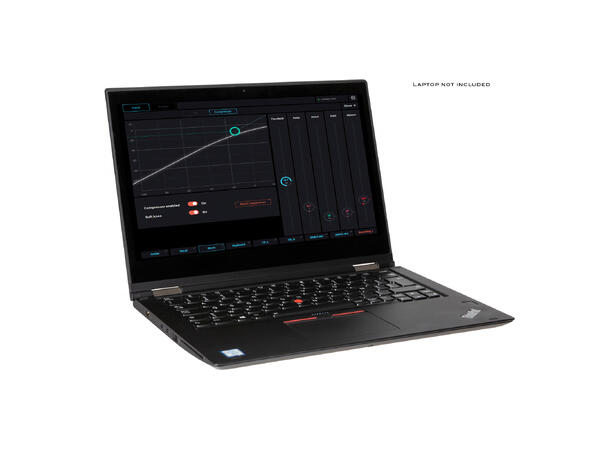

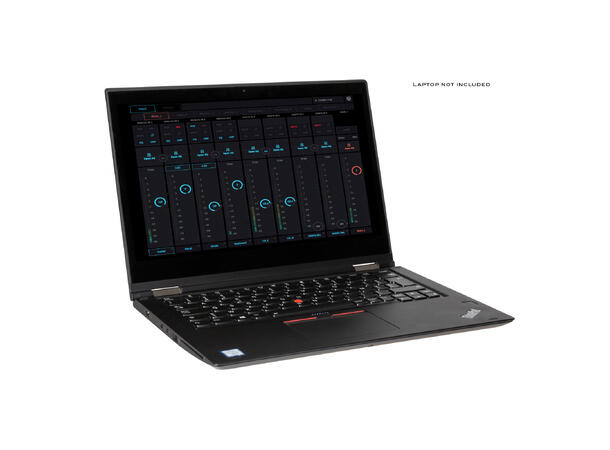

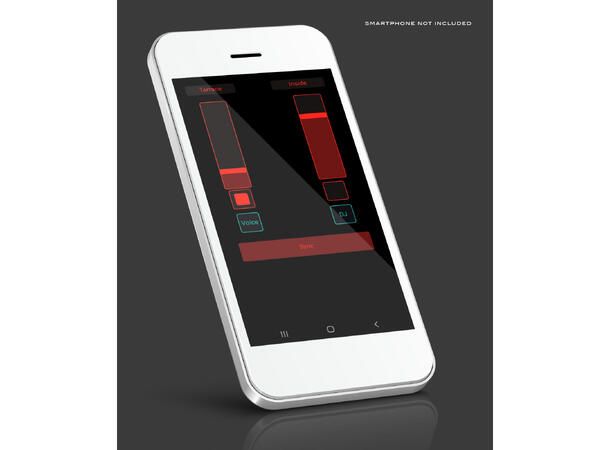

- Integrated WEB SERVER: fully graphical and very user-friendly user interface for easy configuration and DSP control on any network device!
- Extremely high audio quality: S/N > 120dB ~ THD: < 0.003%

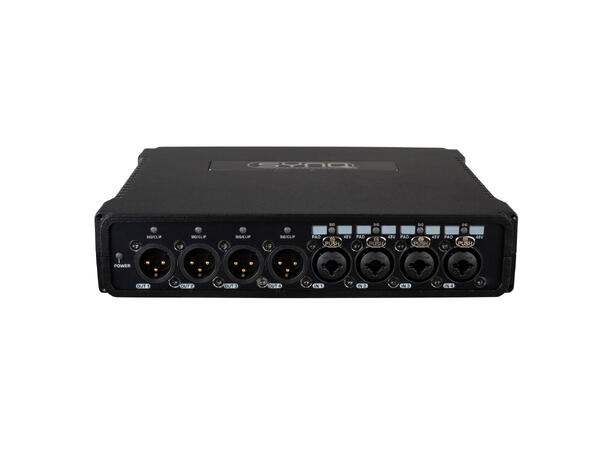

- Fully equipped with original Neutrik® XLR and EtherCON connectors.
- Complies with IEEE 802.3-2005 standard for Information Technology.
- Extreme reliability, thanks to the exclusive use of industrial-grade components, such as: high-end Burr Brown audio DACs, AKM ADCs, Wurth electrolytic capacitors, …
- POWER options:

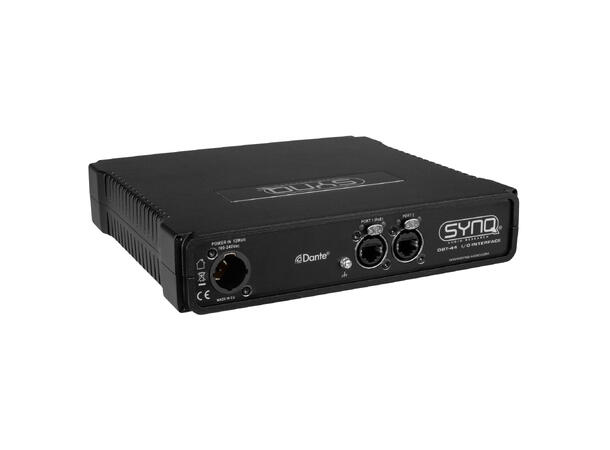

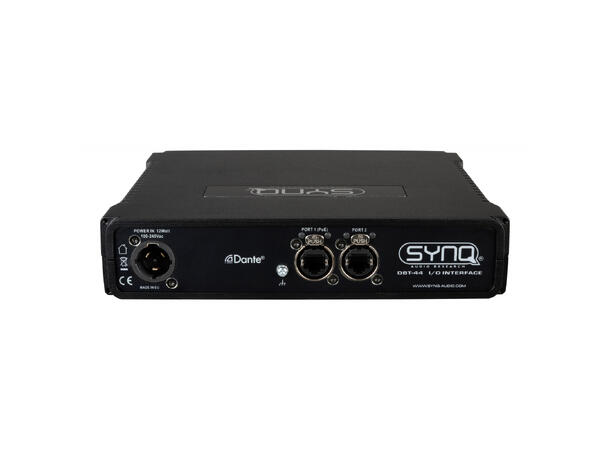

– PowerCON TRUE1: 100-240Vac 50/60Hz
– PoE: Power over Ethernet (PoE class 0) - HOUSING: ½ 19” diecast housing with different installation options:
– 1 unit fits in a 1U 19″ rack (19″ adapter optional)
– 2 units fit together in a 1U 19″ rack (adapters included)
– Easy wall mounting with optional wall mount adapter
Easy truss mounting with optional truss mount adapter
Strong rubber protection adapters for use as stage box! (optional)
