Nothing’s swept under the carpet

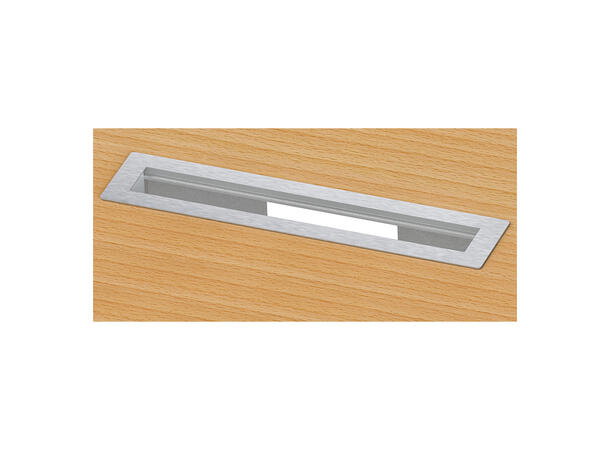

SYSFRAME 45 – the smart one (Steel mounting frame)
…for classrooms, offices, conference halls or any other places where power, data and media connections are needed in a compact, well-priced installation unit. The slim steel frame with its powder-coated surface can be integrated almost anywhere. Owing to the two available sizes it also adapts perfectly to the installation requirements.
The optional cable management tray with side-on connection plane for SYSBOXX front modules also helps to clear the mess under the table; moreover it is perfectly suitable for the integration of e.g. HDMI ® extender solutions.
SYSFRAME45 desk mounting frame for up to four W45…-modules. – Desk mounting frame made of solid VA sheet metal powder-coated RAL 9006 – Sheet steel mounting brackets – Clamping range: 8-40mm (0.315-1.575 in.)
Dimensions:
– Mounting frame: 410x90mm
– Corner radius frame: 4mm
– Table cut: 397x70mm R = 10 … 15 mm
– Overall height: 108mm (in 10mm table plate)
Advantages:
- Energy, data and media connections combined in one compact unit
- Optional cable management tray with lateral SYSBOXX front panel mounting facility (4 WU)
- Schuko connection modules (only for D/BE/FR) with scoop-proof GST18i3 connections (no professional electrician required)
- Easy integration even into existing furniture systems
- Innovative clamping technology for assembly in tabletops of 10 to 60 mm / 0.4 to 2.36′ thickness
- Dimensionally stable and robust all metal frame
Miscellaneous:
- 1.5 mm thickness
Application:
- Cost-effective media connection panels for the object sector
Specifications:
| Article number | SYSFRAME45-8 |
|---|---|
| EAN | 4049371262439 |
| Brand | SYSWALL |
| Type | Table mounting frame |
| Colour | grey |
| Colour detailed | silver |
| Weight kg | .78 |
| Model | Desk installation frame for 8 modules |
| Width mm | 410 |
| Depth mm | 90 |
