Beskrivelse
Speaker type: Powered Subwoofer, bass-reflex
Frequency range (-10dB): 33Hz – 150Hz
Coverage area: –

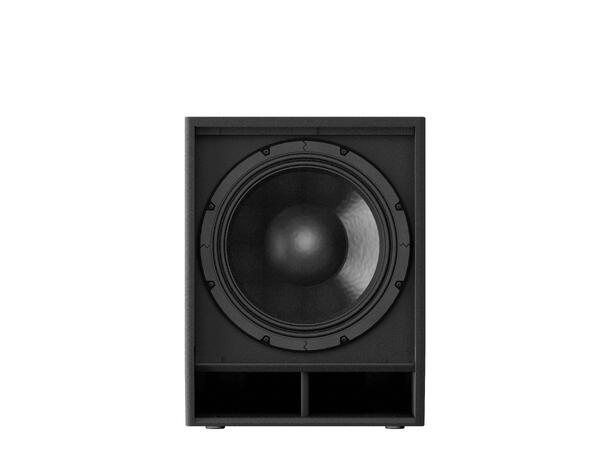

Components (LF): 15″ Cone, 4″ Voice Coil, Ferrite magnet
Sampling frequency rate: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum output level (1m; on axis): 136dB SPL *1
Power rating (Dynamic): 1600W *2
Power rating (Continuous): 1230W
I/O Connectors (Analog I/O): Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kO, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT
I/O Connectors (Others): USB2.0 Host 5V 500mA for USB memory DATA storage/load
I/O Connectors (AC): IEC AC inlet x1 (V-Lock)
Amplifier class: Class-D
Cooling: Fan cooling, Variable speeds
Power consumption: 40W (Idle), 180W (1/8)
Handle: Aluminium die-cast, Side x2
Rigging: –
Width: 450 mm (17.7″)
Height: 587 mm (23.1″) (with rubber feet)
Depth: 600 mm (23.6″)
Net weight: 40.0kg (88.2lbs)
Options: Cover: SPCVR-DXS15X, Caster: SPW-1
Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle: –
Pole socket: F35 mm (depth 80mm), M20 Threaded (depth 25mm)
