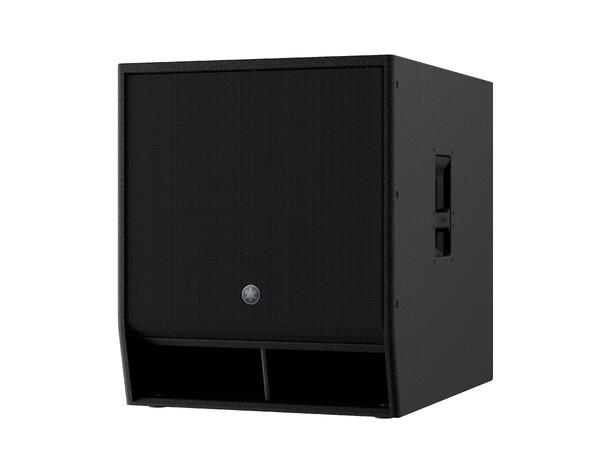

Name: Yamaha DXS18XLF Aktiv subwoofer - Alfa Audio Solutions
SKU: DXS18XLF-YA
Price: 22211.00 NOK
Availability: OutOfStock

Beskrivelse

Speaker type: Powered Subwoofer, bass-reflex

Frequency range (-10dB): 30Hz – 150Hz

Coverage area: –

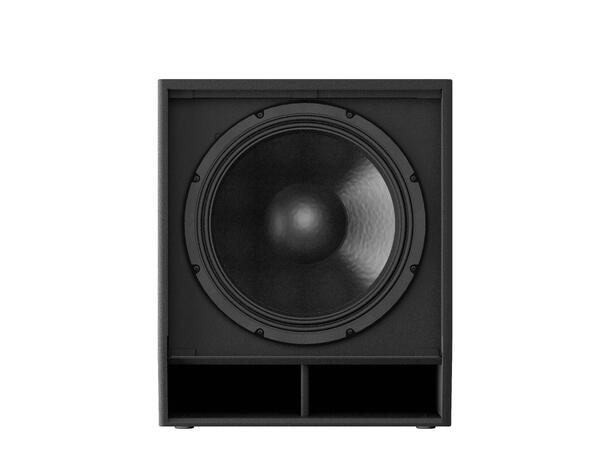

Components (LF): 18″ Cone, 4″ Voice Coil, Ferrite magnet

Components (MF): –

Components (HF): –

Crossover: –

Sampling frequency rate: 96kHz and FIR Filter

A/D D/A Converters: 96kHz AD/DA

Maximum output level (1m; on axis): 136dB SPL *1

Power rating (Dynamic): 1600W *2

Power rating (Continuous): 1230W

I/O Connectors (Analog I/O): Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kO, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT

I/O Connectors (Others): USB2.0 Host 5V 500mA for USB memory DATA storage/load

I/O Connectors (AC): IEC AC inlet x1 (V-Lock)

Amplifier class: Class-D

Cooling: Fan cooling, Variable speeds

Power consumption: 40W (Idle), 180W (1/8)

Handle: Aluminium die-cast, Side x2

Rigging: –

Width: 550 mm (21.7″)

Height: 657 mm (25.9″) (with rubber feet)

Depth: 720 mm (28.3″)

Net weight: 48.9kg (107.8lbs)

Options: Cover: SPCVR-DXS18X, Caster: SPW-1

Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black

Floor Monitor Angle: –

Pole socket: F35 mm (depth 80mm), M20 Threaded (depth 25mm)

Tilleggsinformasjon

Vekt	10 kg
