Beskrivelse
Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB): 44Hz – 20kHz
Coverage area: H90? x V60? (Rotatable)

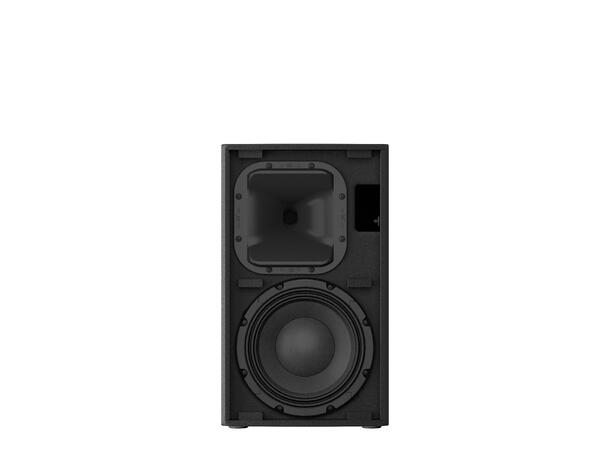

Components (LF): 10″ Cone, 3″ Voice Coil, Neodymium magnet
Components (MF): –
Components (HF): 2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 1.8kHz (FIR-X)
Sampling frequency rate: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum output level (1m; on axis): 137dB SPL *1
Power rating (Dynamic): 2000W (LF:1000W, MF/HF: 1000W) *2
Power rating (Continuous): 1300W (LF: 920W, MF/HF: 380W)

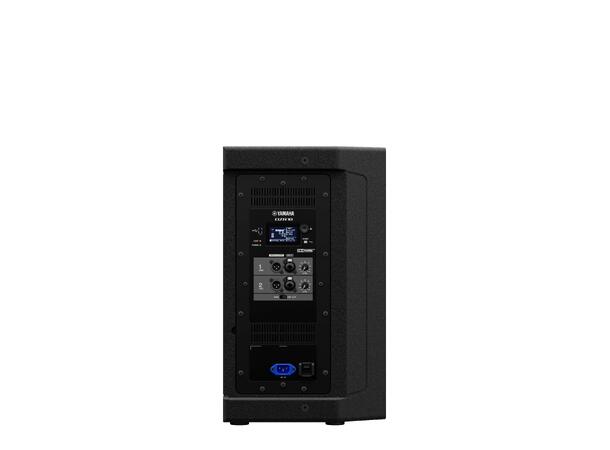

I/O Connectors (Analog I/O): Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kO, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
I/O Connectors (Others): USB2.0 Host 5V 500mA for USB memory DATA storage/load
I/O Connectors (AC): IEC AC inlet x1 (V-Lock)
Amplifier class: Class-D
Cooling: Fan cooling, Variable speeds
Power consumption: 45W (Idle), 150W (1/8)
Handle: Aluminium die-cast, Top x1, Side x1
Rigging: M10 x8, M8 x2
Width: 315 mm (12.4″)
Height: 537 mm (21.1″) (with rubber feet)
Depth: 345 mm (13.6″)
Net weight: 17.9kg (39.5lbs)
Options: U-bracket: UB-DZR10H/V, Cover: SPCVR-DZR10
Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black

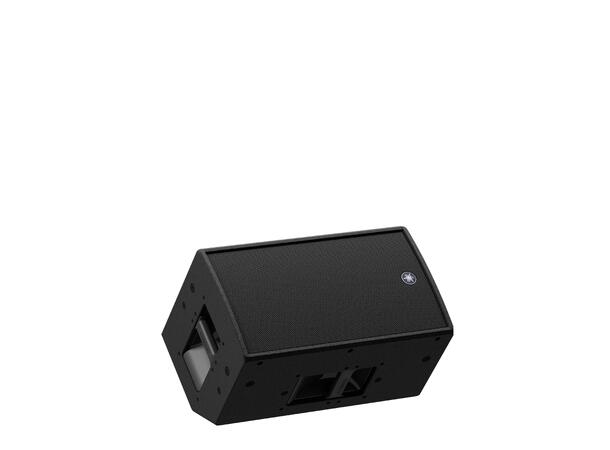

Floor Monitor Angle: 50°
Pole socket: F35 mm x2 (0° or -7°)
