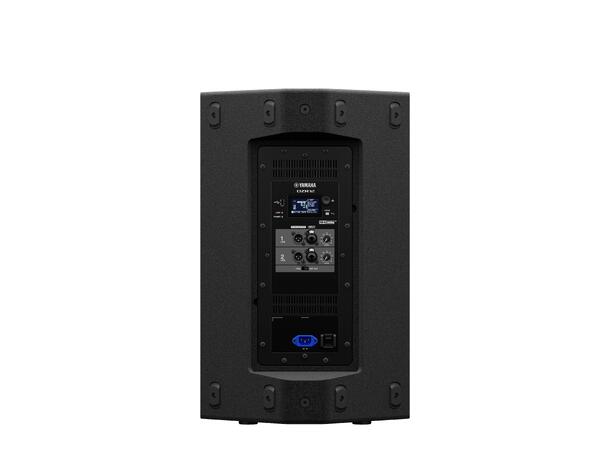

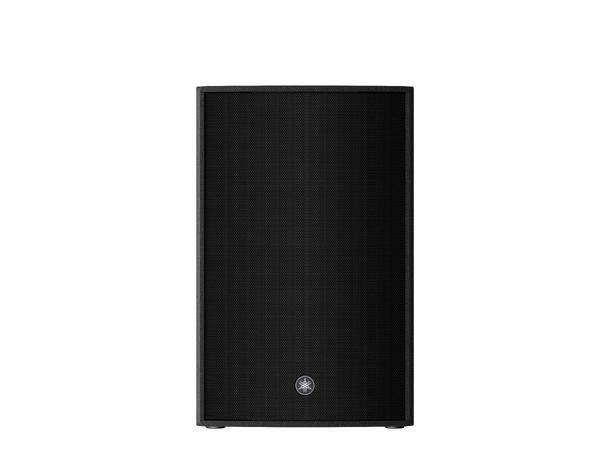

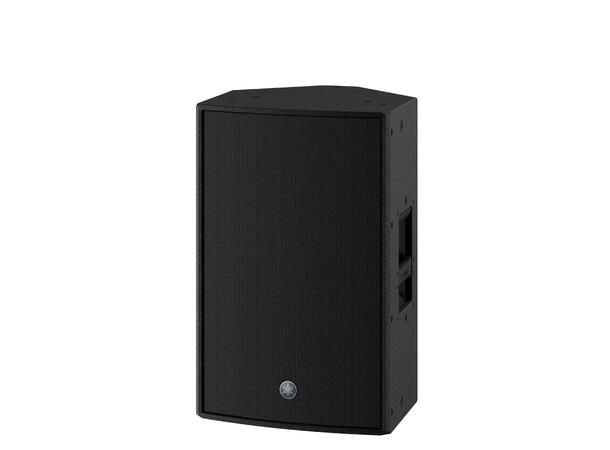

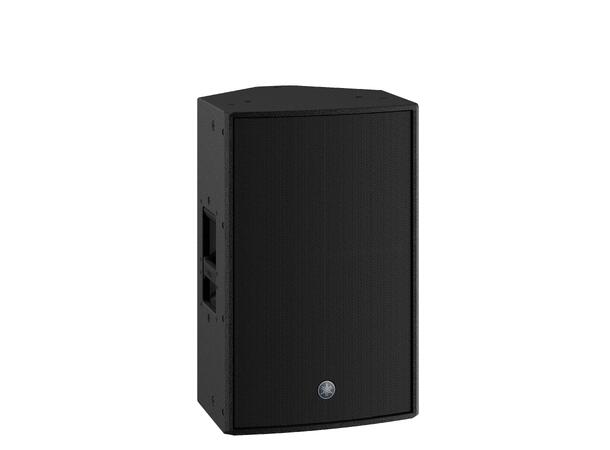

Yamaha DZR12 Aktiv høyttaler
Yamaha DZR12 Aktiv høyttaler - Bilde 2
Yamaha DZR12 Aktiv høyttaler - Bilde 3
Yamaha DZR12 Aktiv høyttaler - Bilde 4
Yamaha DZR12 Aktiv høyttaler - Bilde 5
Yamaha DZR12 Aktiv høyttaler - Bilde 6
Yamaha DZR12 Aktiv høyttaler - Bilde 7

Yamaha DZR12 Aktiv høyttaler

kr 22 441,25

2-veis, 12″ + 2″

På lager hos leverandør

Kontakt oss:     tord@alfaaudio.no
SKU: DZR12-YA
Category: ,

Beskrivelse

  • Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency range (-10dB): 39Hz – 20kHz
  • Coverage area: H90? x V60? (Rotatable)

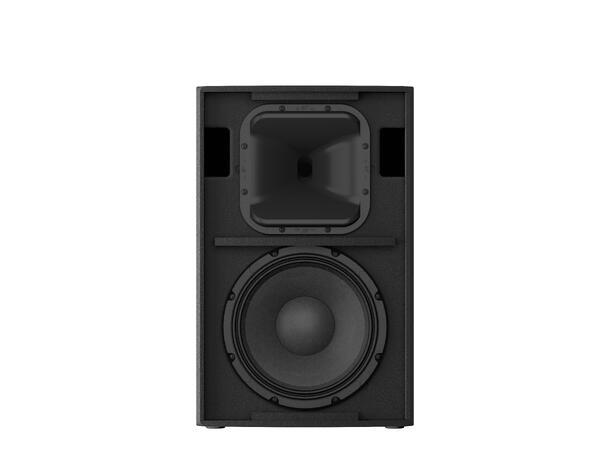

  • Components (LF): 12″ Cone, 3″ Voice Coil, Neodymium magnet
  • Components (MF): –
  • Components (HF): 2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet
  • Crossover: 1.8kHz (FIR-X)
  • Sampling frequency rate: 96kHz and FIR Filter
  • A/D D/A Converters: 96kHz AD/DA
  • Maximum output level (1m; on axis): 139dB SPL *1
  • Power rating (Dynamic): 2000W (LF:1000W, MF/HF: 1000W) *2
  • Power rating (Continuous): 1300W (LF: 920W, MF/HF: 380W)
  • I/O Connectors (Analog I/O): Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kO, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
  • I/O Connectors (Others): USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • I/O Connectors (AC): IEC AC inlet x1 (V-Lock)
  • Amplifier class: Class-D
  • Cooling: Fan cooling, Variable speeds
  • Power consumption: 45W (Idle), 150W (1/8)
  • Handle: Aluminium die-cast, Side x2
  • Rigging: M10 x12
  • Width: 410 mm (16.1″)
  • Height: 646 mm (25.4″) (with rubber feet)
  • Depth: 394 mm (15.5″)
  • Net weight: 21.4kg (47.2lbs)
  • Options: U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
  • Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black

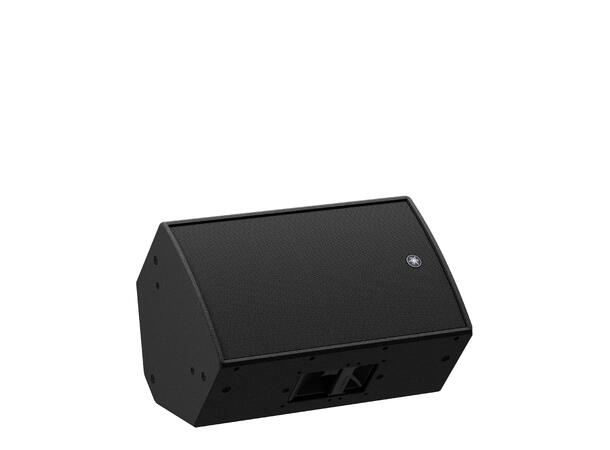

  • Floor Monitor Angle: 50° Symmetrical
  • Pole socket: F35 mm x2 (0° or -7°)

    • Tilleggsinformasjon

    Vekt10 kg
