Speaker type: 3-way, Bi-ampled Powered Speaker, Bass-reflex
Frequency range (-10dB): 31Hz – 20kHz
Coverage area: H75? x V50?

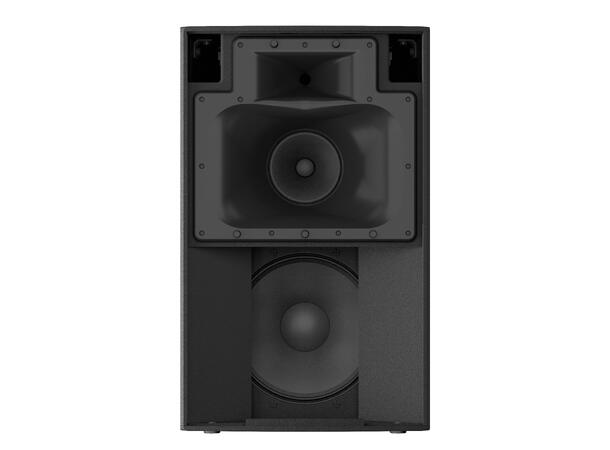

Components (LF): 15″ Cone, 3″ Voice Coil, Neodymium magnet
Components (MF): 8″ Cone, 1.5″ Voice Coil, Ferrite magnet
Components (HF): 2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet
Crossover: 700Hz (FIR-X), 2.5kHz (Passive)
Sampling frequency rate: 96kHz and FIR Filter
A/D D/A Converters: 96kHz AD/DA
Maximum output level (1m; on axis): 143dB SPL *1
Power rating (Dynamic): 2000W (LF:1000W, MF/HF: 1000W) *2
Power rating (Continuous): 1300W (LF: 920W, MF/HF: 380W)

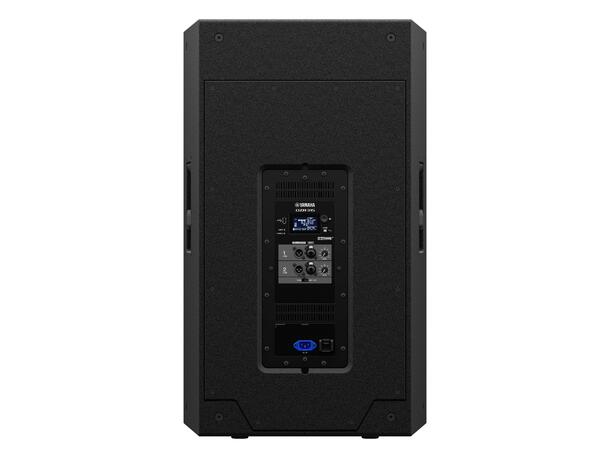

I/O Connectors (Analog I/O): Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kO, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
I/O Connectors (Others): USB2.0 Host 5V 500mA for USB memory DATA storage/load
I/O Connectors (AC): IEC AC inlet x1 (V-Lock)
Amplifier class: Class-D
Cooling: Fan cooling, Variable speeds
Power consumption: 45W (Idle), 150W (1/8)
Handle: Aluminium die-cast, Side x2
Rigging: M10 x16
Width: 550 mm (21.6″)
Height: 897 mm (35.3″) (with rubber feet)
Depth: 520 mm (20.5″)
Net weight: 41.6kg (91.7lbs)
Options: Cover: SPCVR-DZR315
Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
Floor Monitor Angle: –
Pole socket: –
