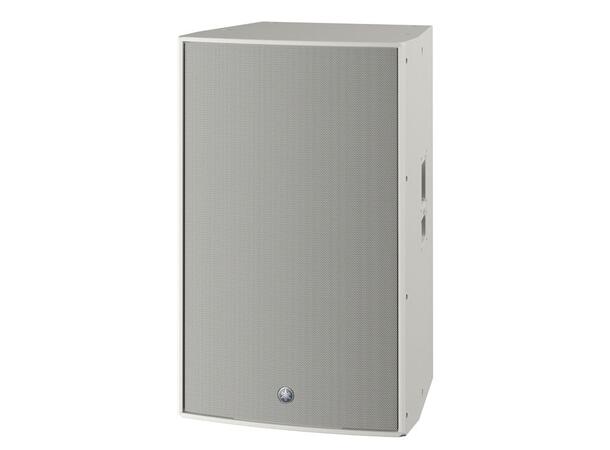

Yamaha DZR315W Aktiv høyttaler

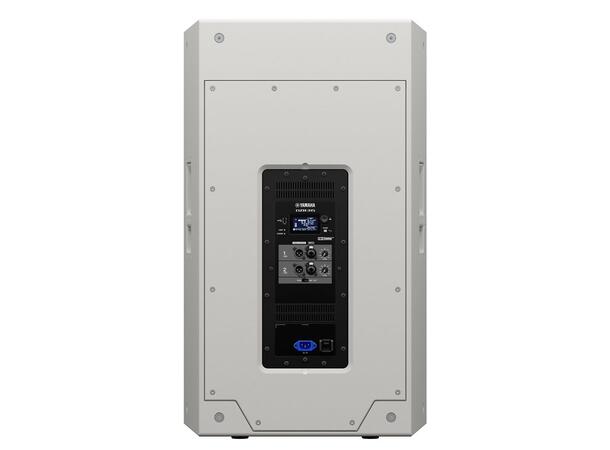

Yamaha DZR315W Aktiv høyttaler - Bilde 2
Yamaha DZR315W Aktiv høyttaler - Bilde 3
Yamaha DZR315W Aktiv høyttaler - Bilde 4

Yamaha DZR315W Aktiv høyttaler

kr 34 736,25

3-veis, 15″ + 8″ + 2″, Hvit

På lager hos leverandør

Kontakt oss:     tord@alfaaudio.no
SKU: 172392
Category: ,

Beskrivelse

  • Speaker type: 3-way, Bi-ampled Powered Speaker, Bass-reflex
  • Frequency range (-10dB): 31Hz – 20kHz
  • Coverage area: H75? x V50?
  • Components (LF): 15″ Cone, 3″ Voice Coil, Neodymium magnet
  • Components (MF): 8″ Cone, 1.5″ Voice Coil, Ferrite magnet
  • Components (HF): 2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet
  • Crossover: 700Hz (FIR-X), 2.5kHz (Passive)
  • Sampling frequency rate: 96kHz and FIR Filter
  • A/D D/A Converters: 96kHz AD/DA
  • Maximum output level (1m; on axis): 143dB SPL *1
  • Power rating (Dynamic): 2000W (LF:1000W, MF/HF: 1000W) *2
  • Power rating (Continuous): 1300W (LF: 920W, MF/HF: 380W)
  • I/O Connectors (Analog I/O): Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kO, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
  • I/O Connectors (Others): USB2.0 Host 5V 500mA for USB memory DATA storage/load
  • I/O Connectors (AC): IEC AC inlet x1 (V-Lock)
  • Amplifier class: Class-D
  • Cooling: Fan cooling, Variable speeds
  • Power consumption: 45W (Idle), 150W (1/8)
  • Handle: Aluminium die-cast, Side x2
  • Rigging: M10 x16
  • Width: 550 mm (21.6″)
  • Height: 897 mm (35.3″) (with rubber feet)
  • Depth: 520 mm (20.5″)
  • Net weight: 41.6kg (91.7lbs)
  • Options: Cover: SPCVR-DZR315
  • Others: Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black
  • Floor Monitor Angle: –
  • Pole socket: –

    • Tilleggsinformasjon

    Vekt10 kg
