Beskrivelse

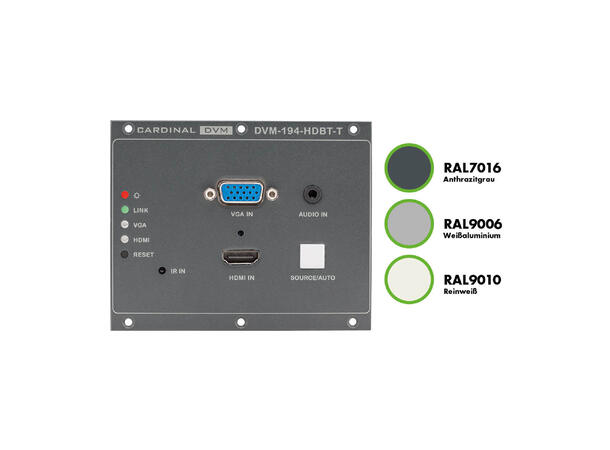

For the installation in desk, wall and floor systems the compact DVM-194-HDBT-T front panel solution comprises the following requirements in a single junction box of only three width units: HDMI®, VGA and mini jack inputs, automatic or manual source switching, HDBaseT output, power supply via PoH (Power over HDBaseT), built-in IR receiver, rear RS232 connection plus ample signal indicators.
Advantages:
- Compatible with SYSBOXX / SYSDESK / SYSBOARD / SYSFLOOR / SYSTRUNK
- integrated scaler for VGA
Application:
- transmits FullHD signals up to 70m
- transmits 4K / UHD signals up to 40m
- transmits RS232 & IR bidirectionally
- supports HDCP up to V1.4
Specifications:
| Article number | DVM-194-HDBT-T-S |
|---|---|
| EAN | 4049371381420 |
| Brand | CARDINAL DVM |
| Type | Front panel |
| Colour | white |
| Colour detailed | white aluminum RAL9006 |
| Model | Front panel, white aluminum RAL9006, HDMI, VGA mini jack <> HDBaseT |
| Packing | 1 |
