HDBaseT Extender System
For assembly into dado ducts and desk mounting frames

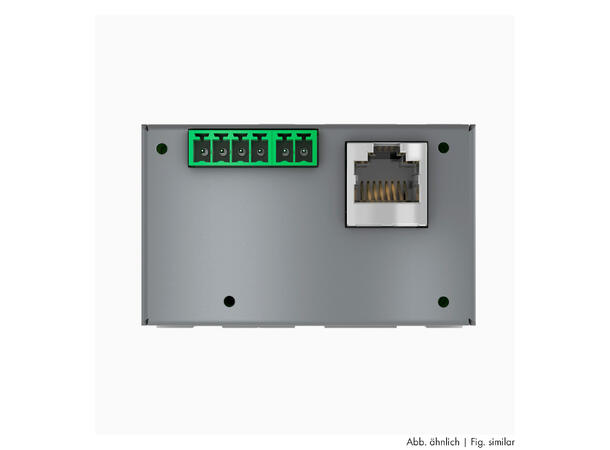

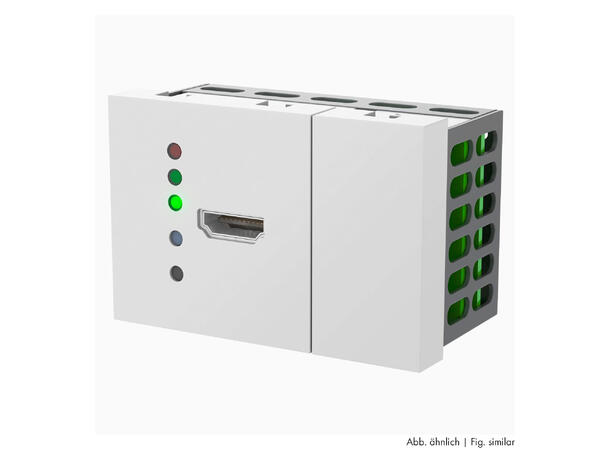

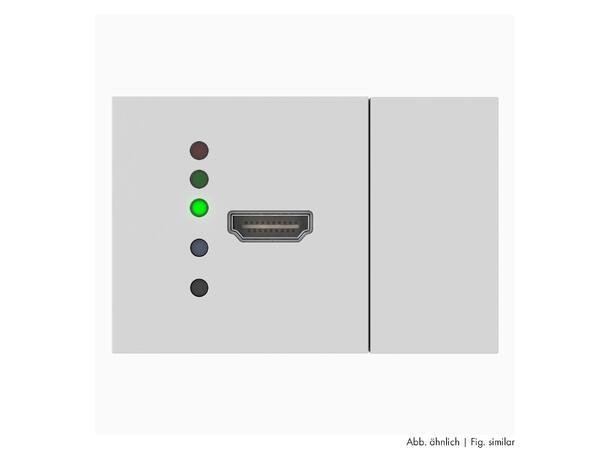

Small and nice … Our new ClipIn mini wallplate in the SYSWALL45 format enables a data transmission via HDBaseT in a very small space; 4K over distances of up to 40 m (131 ft.), Full HD up to 70 m (230 ft.). Owing to its compact size, the HDBaseT transmitter can be installed into any common 45 mm (1.77 in.) duct system as well as our 45 mm (1.77 in.) wall and desk systems, SYSWALL and SYSFRAME. An integration into any EU-typical dual flushmount box is equally possible while still holding space for a second W45 module. Probably the smallest HDBaseT transmitter on the market offers the following features: frontside HDMI® input and integrated IR receiver plus rearside 12V and RS232 connections for direct operation with RS232 pushbutton modules from CARDINAL DVM. LEDs on the front panel indicate the HDMI®, HDCP (support up to version 2.2 possible) and HDBaseT status. The module is available in the standard colors white RAL9010), alu silver (RAL9006), and charcoal gray (RAL7016).
Advantages:
- Suitable for all commonly available 45 mm (1.77 in.) duct systems
- Compatible with the SYSWALL45 wall connection system and the SYSFRAME45 series of desk mounting frames
- PoH (Power over HDBaseT)
Specifications:
| Article number | W45W-3455 |
|---|---|
| EAN | 4049371411349 |
| Type | Module insert |
| Colour | white |
| Colour detailed | pure white RAL9010 |
| Model | SYSWALL45 HDBaseT built-in transmitter |
| Packing | 1 |
| Matchcode | W45KWAP-HDBT-T |
