Beskrivelse
On guard while everybody’s asleep…

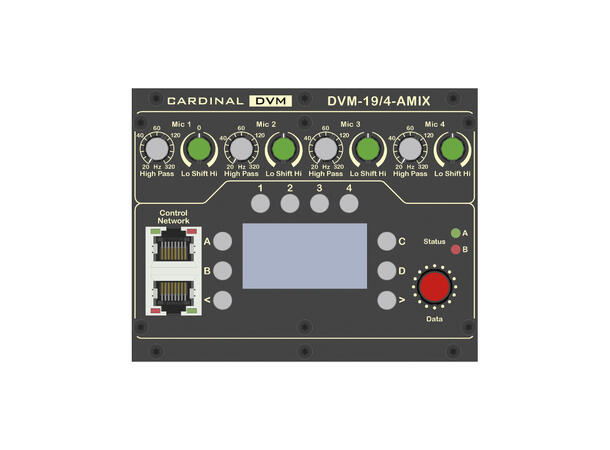

Pro-level automatisation now becomes a reality with the DVM-194-AMIX. For with our fully automated mixer virtually all operation parameters like e.g. input gain and level can be controlled specifically. How about keeping the volume of the microphone channels on a desired level fully automatically?
Thanks to the automated control this is not a problem for our new mixer! This opens up totally new application scenarios, e.g. as a discussion system for telephone and video conferences. In addition, the four microphone inputs also have an adjustable high-pass filter and an EQ section.
Two mix buses, a docking bus and an AUX bus are also on board. The docking bus allows a multi-room coupling of several systems, e.g. to send announcements or background music from a central point. Just like the amplifier, the mixer is operated via a display with an intuitive menu and can also be managed via web browser on the PC.
The processor allows to access the following functions:
• Gain on each channel
• Level on each channel
• 48 V on each microphone channel
• Auto level control on each microphone channel
• Mute function on each channel
• Bus routing on each channel
• Docking functionality
• Grand level Master A and Master B
Specifications:
| Article number | DVM-194-AMIX |
|---|---|
| EAN | 4049371195621 |
| Brand | CARDINAL DVM |
| Type | ¼ -19“-Fully automated mixer |
| Weight kg | 1,2 |
| Model | Conference |

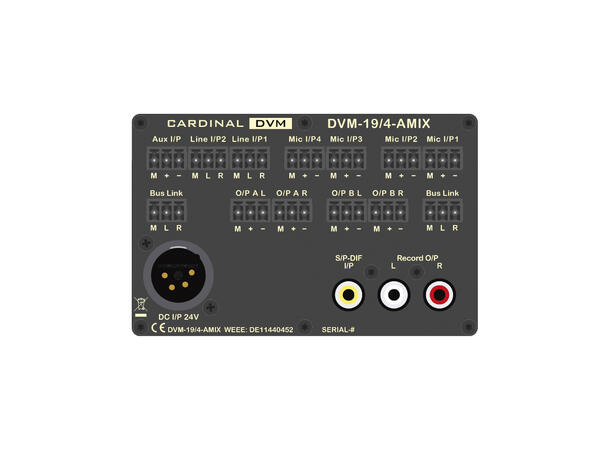

| Input | 1 x digital stereo IN, SPDIF via RCA |
| Input | 2 x RJ45 |
| Input | 2 x analogue stereo IN via 2-pole 3.5 mm euroblock |
| Input | 1 x Dock IN and OUT (stereo) via 3-pole 3.5 mm euroblock |
| Input | 4 x microphone IN balanced via 3-pole 3.5 mm euroblock |
| Input | 1 x AUX IN balanced via 3-pole 3.5 mm euroblock |
| Output | 1 x auxilliary record OUT (Bus level MIX A pre-master) via stereo RCA4-pole XLR male – ext. PSU |
| Output | 2 x stereo OUT balanced via 3-pole 3.5 mm euroblock (Master A, Master B) |
| Length mm | 0 |
| Width mm | 106,5 |
| Height mm | 84 |
| Depth mm | 148 |
| Height unit HE | 2 |
