Beskrivelse
ACTIVE 19“-SYSBOXX-SYSTEME SERIES DVM194
Compared with the 120 series, this is a ¼-19“ module (3 WU) for integration into the SYSBOXX housing system. Here our customers’ and users’ wishes were clearly paramount. For in the commercial sector it’s not always easy to find the right devices for integration. Moreover, they should be easy and intuitive to operate – as specialists aren’t always available for these tasks. Another important aspect is the compact integration into furniture or racks as the connections aren’t always in the right place. The combination of SYSBOXX standard components with the new DVM 194 series provides a previously unknown flexibility and clarity because device and cabling system can be combined in one unit.
DVM 194 MIX – The marvellous mini mixer

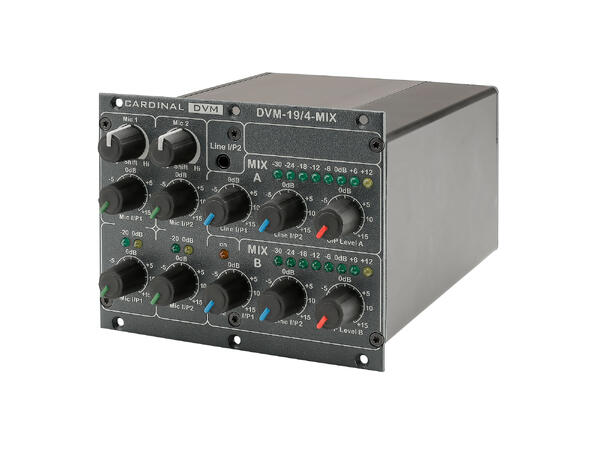

The dual mix-bus design allows a high degree of flexibility. Thus every input signal can be mixed individually with the two mix buses. The two microphone inputs are fitted with switchable phantom power and a switchable high-pass filter (on the back via DIP switch – only to be set by “specialists”). A tone control is available on the front for quickly changing the sound. The inputs have Euroblock terminals (3.5 mm contact spacing). The double LED display per channel (–20/0 dB) provides an easy level control.

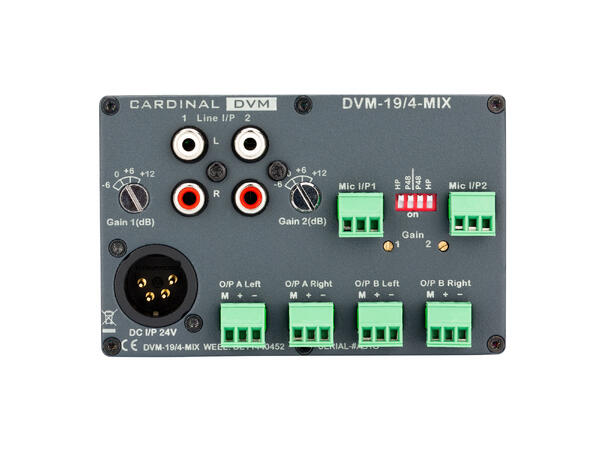

The two stereo line inputs can be fed in on the rear via RCA sockets. Input 2 has a switched mini jack sockets on the front – ideal for
Specifications:
| Article number | DVM-194-MIX |
|---|---|
| EAN | 4049371097550 |
| Brand | CARDINAL DVM |
| Type | ¼ -19“ mixer module |
| Width mm | 106,5 |
| Height mm | 84 |
| Depth mm | 132 |
| Height unit HE | 2 |
